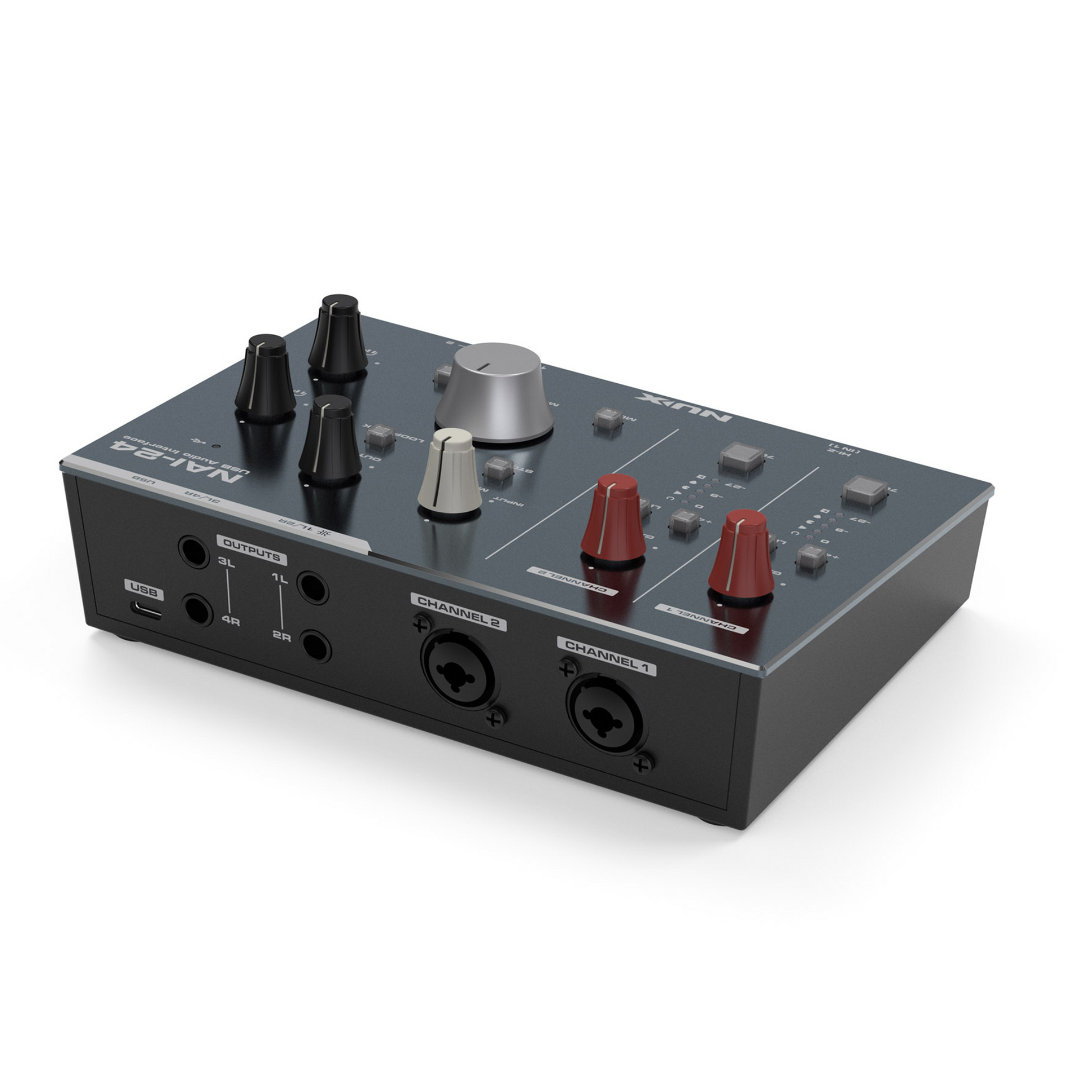

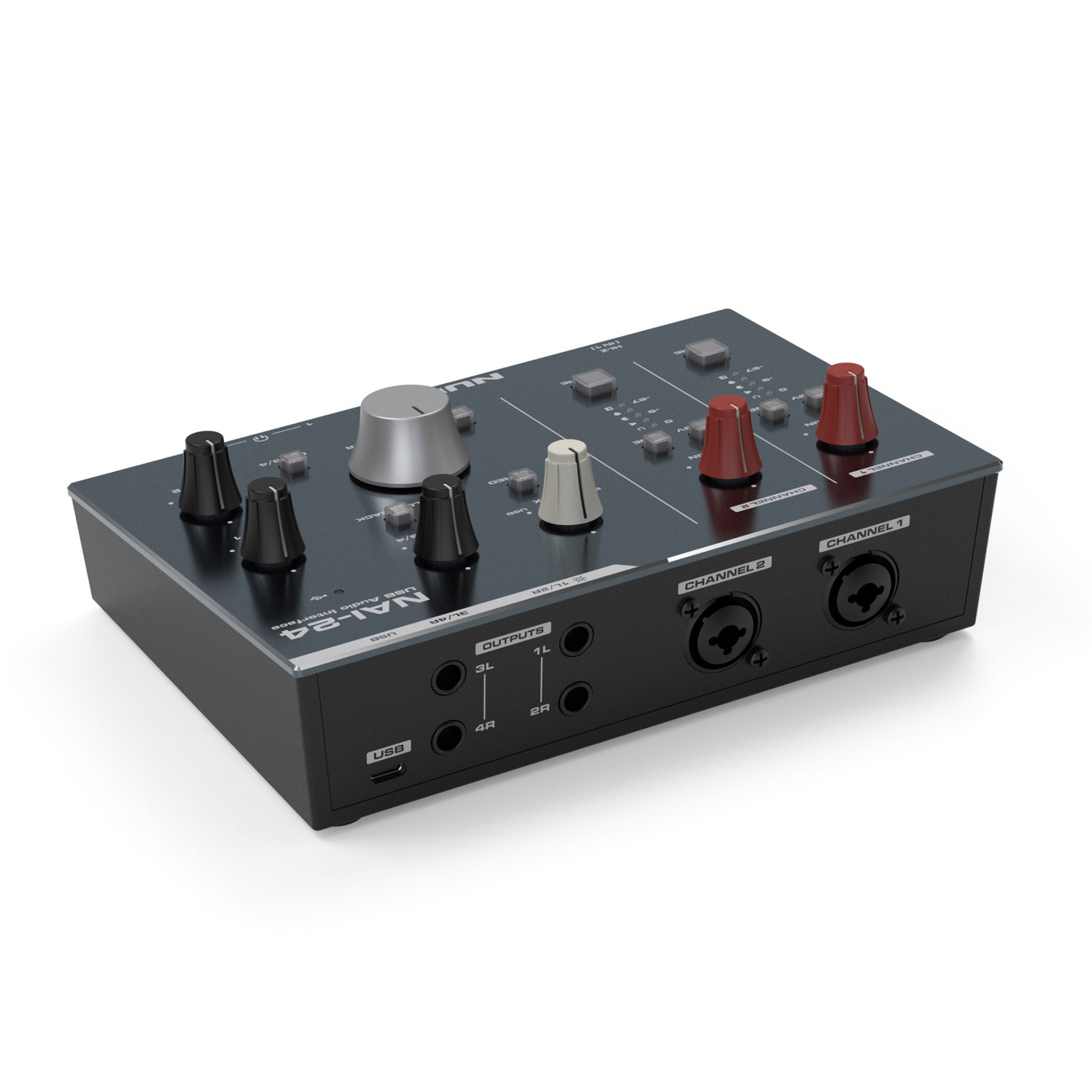

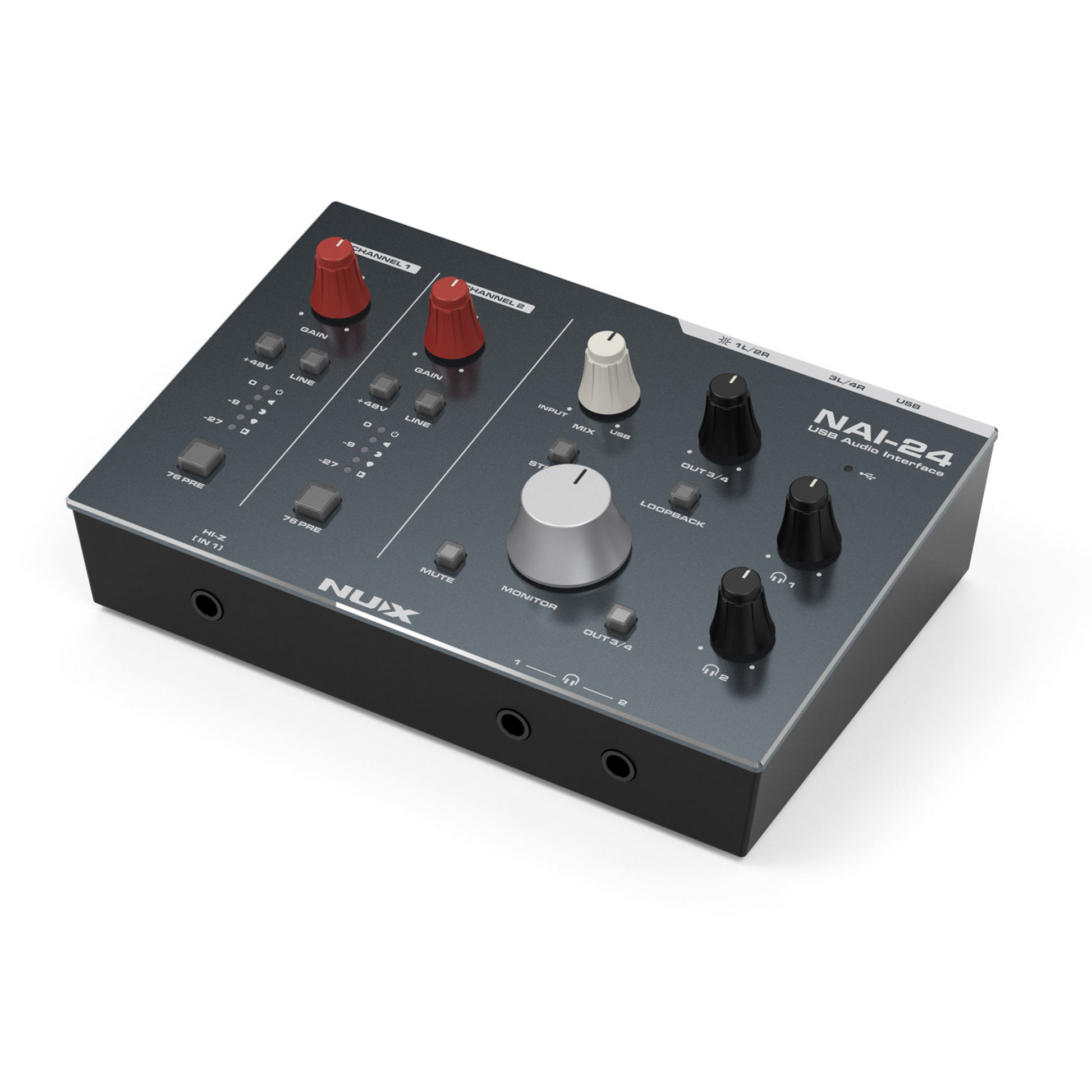

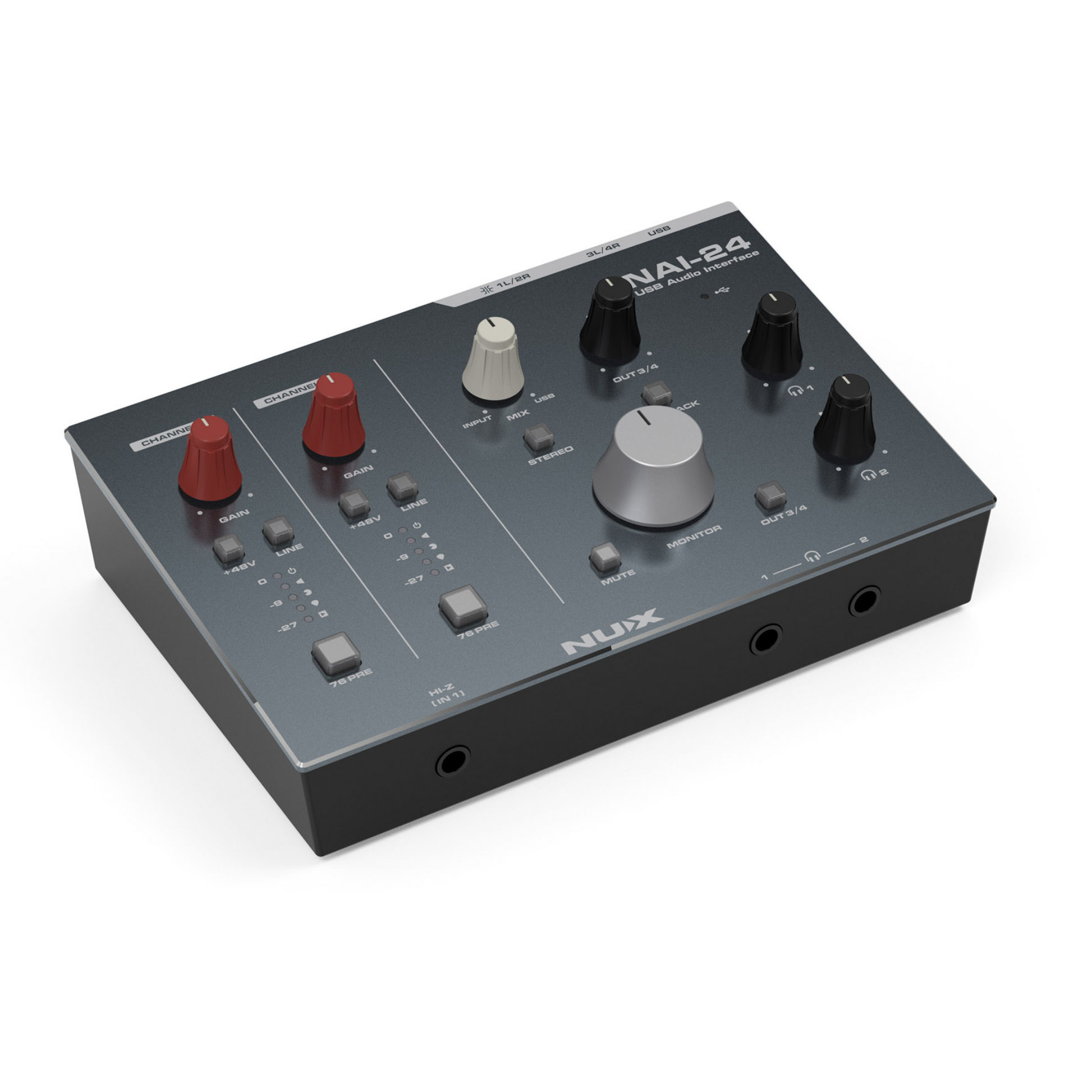

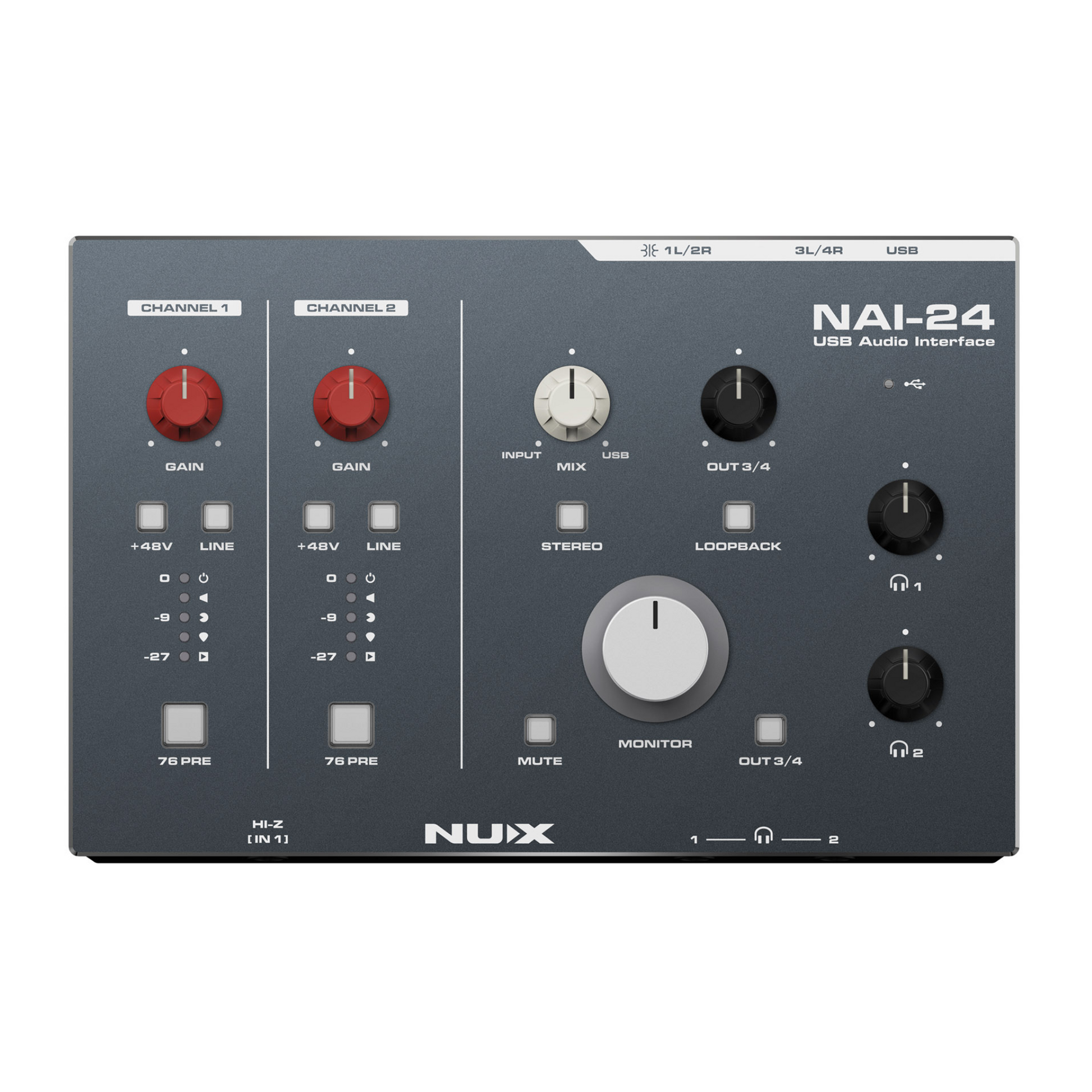

NUX NAI-24 2 Input 4 Output USB Audio Interface

NUX NAI-24 2 Input 4 Output USB Audio Interface (NAI24)

The NAI-24 is a compact, studio-grade 2-input / 4-output USB audio interface built for creators and engineers who demand professional sound in a small package. It features a pure Class-A discrete transistor microphone preamp capable of delivering up to 71 dB of gain, enhanced by a built-in analog FET-style 76PRE compressor circuit inspired by classic compressors. Choose from multiple modes—Vocal, Guitar, or Live Streaming—to match your source with optimized compression settings.

Equipped with premium AKM AD/DA converters, the NAI-24 supports sample rates up to 32-bit / 192 kHz. It also includes studio-grade audio transformers on its main outputs for enhanced warmth and electrical isolation, reducing unwanted noise and ground loop issues. The interface offers flexible routing with dual headphone outputs (each independently routed), independent phantom power per channel, HI-Z input, line input switching, loopback, ultra-low latency (3.17 ms @ 192 kHz), and versatile 3/4 output mode for monitoring or routing external signals. Plus, you get Cubase LE included to get started right out of the box.

FEATURES

– 2-in/4-out desktop USB audio interface with support for up to 32-bit/192kHz sample rate.

– Pure Class-A discrete transistor preamplifier delivering ultra-high dynamic range and resolution.

– FET type 76PRE compression circuit with multiple preset modes for various applications.

– Studio-grade audio transformer on Main Output 1L/2R channels for warm, professional sound characteristics.

– Additional 3L/4R output channels for auxiliary output, enhancing versatility in different setups.

– Two high-performance headphone amplifiers with routable channels for customized monitoring.

– USB powered, no external power supply required.

– 48V phantom power with independent on/off control for each channel.

– Ultra-low latency direct monitoring channels for real-time performance.

– Provides stable and reliable signal transmission using high-quality XLR connectors and 6.35mm connectors.

SPECIFICATIONS

MIC IN

– Dynamic Range: 114dB(A-weighted)

– Frequency Response: 20-20000Hz ± 0.1dB

– THD+N: 0.002%@-1dBFS(at minimum gain)

– EIN: -126dB(A-weighted)

– Maximum Input Level: 6dBu(at minimum gain)

– Gain Range: 5.4-63dB

– Input lmpedance: 2.4kΩ

LINE IN

– Dynamic Range: 114dB(A-weighted)

– Frequency Response: 20-20000Hz ± 0.12dB

– THD+N：0.003%@-1dBFS (at minimum gain)

– Maximum Input Level: 26dBu (at minimum gain)

– Gain Range: -12.6-45dB

– Input lmpedance: 21kΩ

HI-Z

– Nominal input Level: -10dBu

– Input lmpedance: 1MΩ1

L/2R

– Dynamic Range: 112 dB(Balanced, 600 Ω.A-weighted)

– Frequency Response: 20-20000Hz ± 0.5dB

– Maximum Output Level: +12.4dBu(Balanced,0dBFS)

– THD+N: 0.0015%@-1dBFS

– Output lmpedance: 580Ω

3L/4R

– Dynamic Range: 112dB(Balanced, 200kΩ, A-weighted)

– Frequency Response: 20-20000Hz ± 0.1dB

– THD+N: 0.001%@-1dBFS

– Maximum OutputLevel: +18.4dBu(Balanced, 0dBFS)

– Output lmpedance: 240Ω

PHONES OUTPUT

– Dynamic Range: 104dB (A-weighted)

– Frequency Response: 20-20000Hz ± 0.25dB

– THD+N: 0.005%@-5dBFS

– Power Output: 30mW@32Ω

– Dimensions: 194(L)x128(W)x67(H)mm

– Weight: 722g
